Ноутбук Lenovo IdeaPad 510 15 [510-15IKB 80SV00BBRA]

Lenovo IdeaPad 510-15 – это, пожалуй, наиболее укомплектованный за свою цену ноутбук на рынке. Для полной идиллии ему не хватает только SSD, но это простительно с учетом его многочисленных преимуществ. Главным достоинством, можно сказать гордостью, IdeaPad 510-15 является даже не турбированный процессор Core i5-7200U, а матовый IPS-экран с разрешением 1920×1080 точек.

Четче некуда

При таком разрешении и диагонали 15,6 дюйма (плотность 144 PPI) изображение на экране выглядит таким же четким, как на 30-дюймовом 4К-мониторе (те же 144 PPI). Правда, при такой плотности дисплея ОС Windows автоматически активирует 125-процентное масштабирование интерфейса приложений. А пользователи с плохим зрением, возможно, будут вынуждены переключиться даже на 150-процентное увеличение. И все бы ничего, если бы не обилие старых приложений, включая многие стандартные из ОС Windows, которые не адаптированы для масштабирования и выглядят размытыми.

Начальный игровой

Имеется у IdeaPad 510-15 и дискретная видеокарта – GeForce 940MX. В самые требовательные игры вроде «Ведьмак 3» и Battlefield 1 на ней поиграть не получится даже на пониженном до 720р-разрешении, зато GTA V и Fallout 4, уже не говоря про WoT, CSGO и Dota 2, пойдут без проблем. Посоветовать Lenovo IdeaPad 510-15 можно практически всем, если только вам не нужно решение поменьше или наоборот побольше.

Lenovo IdeaPad 510-15IKB Notebook Review

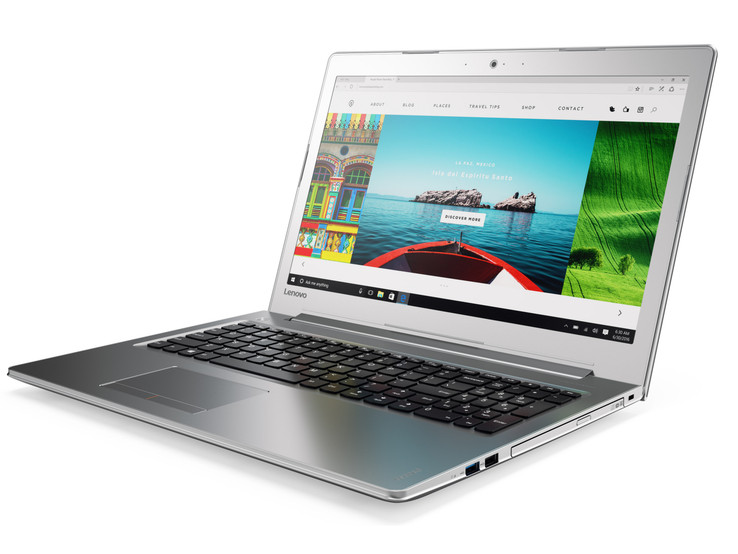

With Lenovo’s IdeaPad 510-15IKB, we are looking at an identically built sister model of the recently tested IdeaPad 510-15ISK. Differences are found in terms of configuration. Our present review sample comes with a Kaby Lake processor and offers an SSD-HDD combination. The DVD has been omitted in favor of a second storage device. Laptops, such as Acer’s Aspire E5-575G, Medion’s Akoya P6670, HP’s Pavilion 15, Asus’ VivoBook X556, count as its rivals.

Since both IdeaPad 510 models are identical, we will not go in-depth about casing, connectivity, input devices or speakers. The corresponding information can be found in the review of the IdeaPad 510-15ISK.

IdeaPad 510-15IKB 80SV0087GE

Intel Core i7-7500U NVIDIA GeForce 940MX

Multimedia — 11/15/2016 — v5.1

The installed Wi-Fi chip by Realtek is surprisingly slow. The transmission rates that we measured in ideal conditions (no other Wi-Fi devices in the immediate vicinity, short distance between laptop and server PC) did not turn out very well. The chip supports the fast ac standard in addition to the 802.11 a/b/g/n Wi-Fi standards.

Display

Pixel grid

The matte, 15.6-inch screen in the IdeaPad has a native resolution of 1920×1080 pixels. The contrast of 1265:1 is very good. The screen could offer a higher brightness (264.9 cd/m²). The panel exhibits PWM flickering at a frequency of 50 Hz in minimum brightness (10 percent). This can cause headaches and/or eye problems even in insensitive users.

* . smaller is better

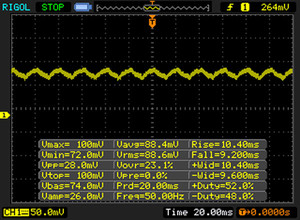

Screen Flickering / PWM (Pulse-Width Modulation)

The display backlight flickers at 50 Hz (Likely utilizing PWM) Flickering detected at a brightness setting of 10 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 50 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 14780 (minimum: 5 — maximum: 2500000) Hz was measured.

The screen presents a DeltaE 2000 color shift of 4.78 in delivery state. This is quite close to the target range (DeltaE less than 3). The panel does not exhibit a bluish tint.

CalMAN — ColorChecker
CalMAN — Grayscale
CalMAN — Saturation Sweeps

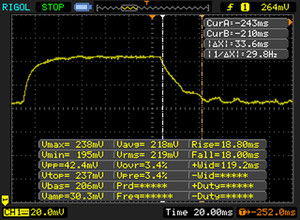

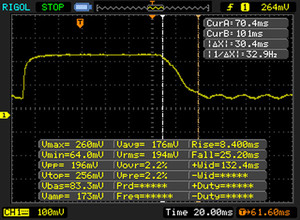

Display Response Times

Lenovo furnishes the IdeaPad with a viewing-angle stable IPS panel. Thus, the screen remains legible from every position. The laptop is outdoor suitable when the sun is not shining too brightly.

Performance

Lenovo delivers a 15.6-inch, gaming suitable all-rounder with the IdeaPad 510-15IKB. Our review sample costs around 1000 Euros (

$1059). Other configurations exist. Their prices start at 700 Euros (

$741). The identically built IdeaPad 510-15ISK expands the lineup even further.

Processor

The IdeaPad sports a brand new Intel Core i7-7500U (Kaby Lake) dual-core processor. It is a frugal ULV CPU (TDP: 15 watts). Kaby Lake hardly differs from the Skylake processor. Intel has primarily optimized it. The processor clocks at a base speed of 2.7 GHz, which can be boosted up to 3.5 GHz (both cores). The CPU only achieved full speed in the single thread tests that we performed. The speed throttled to 2.9 to 3 GHz just after a few seconds in multithread applications.

System Performance

The system runs smoothly; we did not encounter any problems. The PCMark benchmark scores are very good. It is not possible to increase the system performance since Lenovo has already exhausted all possibilities.

Storage Devices

The system storage is a solid state drive by Lite On. It is a 2.5-inch model with a total capacity of 256 GB. Only roughly 190 GB of that can be used. The Windows installation and recovery partition reserves the remaining storage capacity. The SSD’s transfer rates are good. The IdeaPad additionally sports a conventional 2.5-inch hard drive (5400 RPM).

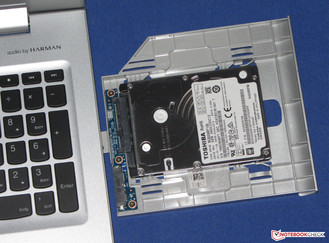

Both drives can be replaced without problems. The SSD is in a drive slot that can be accessed from the outside. The optical drive bay harbors the HDD rather than a DVD burner. The tray can be pulled out after releasing a screw on the laptop’s underside.

. and HDD are easy to replace.

Graphics Card

The laptop is furnished with a dedicated, mid-range GPU in the form of the GeForce 940MX. It supports DirectX 12 and achieves speeds of up to 1202 MHz. According to the spec sheet, the GPU’s maximum speed is 1242 MHz. However, the model installed in the IdeaPad never achieves this rate. Lenovo has likely lowered the maximum slightly ex-factory. The GPU can fall back on 2048 MB of DDR3 video memory. The performance of both the GeForce 940M and GeForce 940MX is virtually identical due to the only marginal speed difference. The used driver version and installed processor have a greater impact here. The 3DMark benchmark scores are within a normal range for this graphics card.

Gaming Performance

Being an all-rounder, the IdeaPad naturally has to be able to render games smoothly. The laptop’s hardware is strong enough for this. Many games can be played using the HD resolution (1366×768 pixels) and low to medium quality settings. Games that are now a few years old or do not have any exorbitant hardware requirements allow for more. We would name "FIFA 17" as an example here. Performance-driven hits like "Deus Ex: Mankind" and "Mafia 3" are not playable.

Emissions and Energy

System Noise

The IdeaPad annoys its user with a permanently active fan. Although it spins at low speeds while idle, it is always audible. Launching an application prompts the fan to speed up for a moment. Surprisingly, the fan does not increase its speed excessively during full load. We measured a noise level of 37.1 dB(A) in the stress test — a very good rate. However, it whistles subtly then. Lenovo should urgently rework the fan management.

Noise Level

Temperature

IdeaPad in the stress test.

The IdeaPad performed our stress test (Prime95 and FurMark run for at least one hour) differently in AC and battery mode. The CPU’s speed fluctuated in battery mode (400 MHz/2.7 GHz). The GPU (135 MHz/600 to 700 MHz) switched between fast and slow. The processor clocked stably at 2.7 GHz in AC mode. The graphics unit’s clock speed varied between 950 and 1100 MHz. The laptop did not get excessively hot. The temperatures were all well below forty degrees Celsius (104 Fahrenheit) on all measuring points.

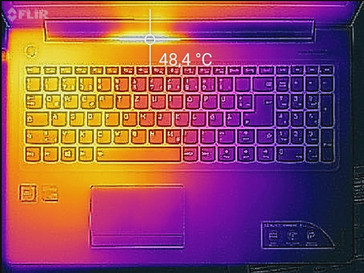

Temperature development upper side (load)

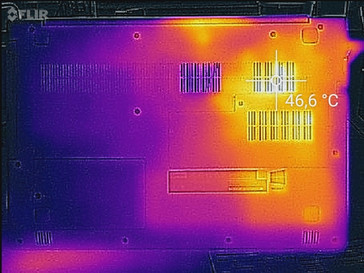

Temperature development underside (load)

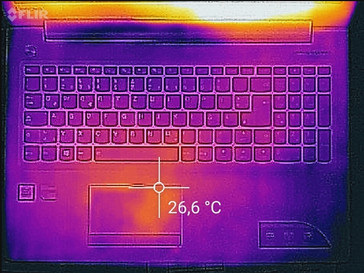

Temperature development upper side (idle)

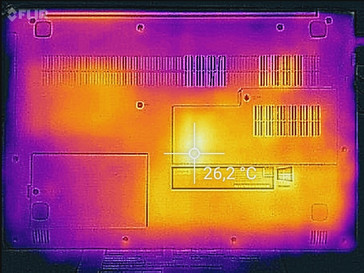

Temperature development underside (idle)

Lenovo IdeaPad 510-15IKB 80SV0087GE

Apple MacBook 12 (Early 2016) 1.1 GHz

Lenovo IdeaPad 510-15IKB 80SV0087GE audio analysis

(±) | speaker loudness is average but good (74 dB)
Bass 100 — 315 Hz
(±) | reduced bass — on average 13% lower than median
(+) | bass is linear (5.6% delta to prev. frequency)
Mids 400 — 2000 Hz
(+) | balanced mids — only 4.5% away from median
(+) | mids are linear (3.5% delta to prev. frequency)
Highs 2 — 16 kHz
(±) | higher highs — on average 5.1% higher than median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 — 16.000 Hz
(±) | linearity of overall sound is average (15.1% difference to median)
Compared to same class
» 24% of all tested devices in this class were better, 4% similar, 72% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 17% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 — 315 Hz
(±) | reduced bass — on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 — 2000 Hz
(+) | balanced mids — only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 — 16 kHz
(+) | balanced highs — only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 — 16.000 Hz
(+) | overall sound is linear (9.3% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 7%, average was 19%, worst was 50%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 3%, average was 20%, worst was 65%

Frequency diagram in comparison (checkboxes above can be turned on/off!)

Power Consumption

The IdeaPad does not exhibit any irregularities in terms of power consumption. We measured a maximum idle power consumption of 9.5 watts. The rate climbed to 48 watts during the stress test. This rate would be higher if the IdeaPad utilized the CPU and GPU Turbo. The power supply has a nominal output of 65 watts.

Обзор ноутбук lenovo ideapad 510-15ikb 80sv00bbra

Подскажите какой максимальный размер оперативной памяти возможен в данной модели , по производетелю пишет что обьём ОЗУ 8 гб правильно я понимаю что 4 распаяно и 4 стоит в 1 слоте которую и можно заменить ?

Максимальный объём 4+8=12Гб
